电连技术的SMA、MCX系列产品接口标准，方便客户选型目标配对连接器。卧，立式型号多样，可供客户不同结构项目选型。产品完全具备自主知识产权，同时可为客户特殊量身定制。高频应用可至6GHz，广泛应用于路由器，小基站，智能电表等。

完善您的搜索
搜索结果(75)
P/N: 818035806

P/N: 818035806

SMA Cable Connector, RG174、RG316、LMR100. 特性阻抗: 50Ω +/-5Ω; 频率: DC to 9 GHz; 驻波⽐: ≤1.50; 插损: ≤ 0.1 x √f(GHz) dB; 中⼼针接触电阻: ≤3 mΩ; 外导体接触电阻: ≤2 mΩ; 额定电压: 335 V DC; 绝缘电阻: >5000MΩ; 机械寿命: ≥500; 联接机构: 螺纹; 界⾯符合标准: MIL-STD-348; ⼯作温度范围: -40 °C - +105 °C; 主体: Brass C3604; 绝缘体: PTFE; 中⼼针: Brass C3604

 查看详情
P/N: 818035807

P/N: 818035807

SMA Cable Plug. SMA Cable Connector,086、RG405. 特性阻抗: 50Ω +/-5Ω；频率: DC to 9 GHz；驻波⽐: ≤1.50 插损: ≤ 0.1 x √f(GHz) dB；中⼼针接触电阻: ≤3 mΩ；外导体接触电阻: ≤2 mΩ；额定电压: 335 V DC；绝缘电阻: >5000MΩ

 查看详情

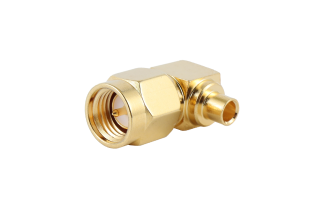

P/N: 818035808

P/N: 818035808

SMA Cable Plu. SMA Cable Connector,086、RG405. 特性阻抗: 50Ω +/-5Ω；频率: DC to 9 GHz；驻波⽐: ≤1.50 插损: ≤ 0.1 x √f(GHz) dB；中⼼针接触电阻: ≤3 mΩ；外导体接触电阻: ≤2 mΩ；额定电压: 335 V DC；绝缘电阻: >5000MΩ

 查看详情

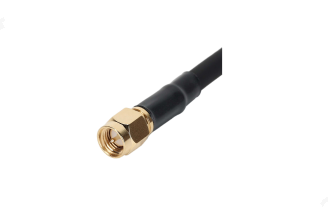

P/N:818047213

P/N:818047213

SMA Cable Plug

 查看详情
P/N:818047214

P/N:818047214

SMA Cable Plug

 查看详情
P/N: 818016758

P/N: 818016758

818016758: SMA Cable Connector, 0.81
818016171: SMA Cable Connector, 1.13
818016766: SMA Cable Connector, 1.37
818017225: SMA Cable Connector, RG178

 查看详情
P/N: 818033551

P/N: 818033551

818033551: SMA Cable Connector, 0.81
818017010: SMA Cable Connector, 1.13
818033853: SMA Cable Connector, 1.37
818033854: SMA Cable Connector, RG178

 查看详情

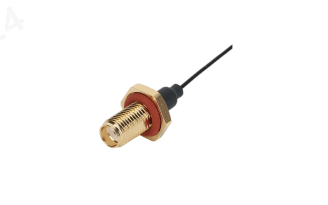

P/N:818038940

P/N:818038940

818038940: SMA Cable Jack, Thread Length:10.5mm, SMA Cable Connector, Waterproof, 0.81
818038941: SMA Cable Jack, Thread Length:10.5mm, SMA Cable Connector, Waterproof, 1.13
818038942: SMA Cable Jack, Thread Length:10.5mm, SMA Cable Connector, Waterproof, 1.37
818038943: SMA Cable Jack, Thread Length:10.5mm, SMA Cable Connector, Waterproof, RG178

 查看详情
P/N:818038944

P/N:818038944

818038944: RP-SMA Cable Jack, Thread Length:10.5mm, RP-SMA Cable Connector, Waterproof, 0.81
818038945: RP-SMA Cable Jack, Thread Length:10.5mm, RP-SMA Cable Connector, Waterproof, 1.13
818038946: RP-SMA Cable Jack, Thread Length:10.5mm, RP-SMA Cable Connector, Waterproof, 1.37
818038947: RP-SMA Cable Jack, Thread Length:10.5mm, RP-SMA Cable Connector, Waterproof, RG178

 查看详情
P/N: 818033552

P/N: 818033552

818033552: SMA Cable Jack, SMA Cable Connector, 0.81
818033553: SMA Cable Jack, SMA Cable Connector, 1.13
818033554: SMA Cable Jack, SMA Cable Connector, 1.37
818033555: SMA Cable Jack, SMA Cable Connector, RG178

 查看详情

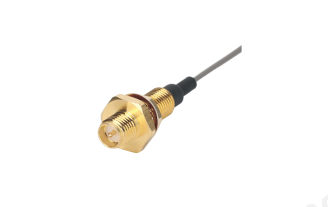

P/N:818038974

P/N:818038974

818038974: RP-SMA Cable Jack, Thread Length:12.0mm, SMA Cable Connector, Waterproof, 0.81
818038975: RP-SMA Cable Jack, Thread Length:12.0mm, SMA Cable Connector, Waterproof, 1.13
818038976: RP-SMA Cable Jack, Thread Length:12.0mm, SMA Cable Connector, Waterproof, 1.37
818038977: RP-SMA Cable Jack, Thread Length:12.0mm, SMA Cable Connector, Waterproof, RG178

 查看详情
P/N:818047210

P/N:818047210

SMA Cable Jack
SMA Cable Connector,1.37

 查看详情
