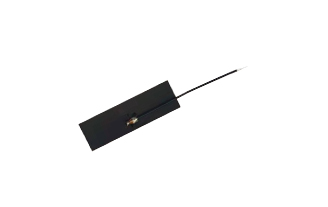

81800U841
Omni directional,BT antenna,FPC,High Performance
| 频段范围 | 2400-2500(MHz) | ||
| 阻抗 | 50 (Ω) | ||
| 驻波比 | ≤2.0 | ||
| 辐射方向 | Omni directional | ||
| 极化形式 | Vertical | ||
| 峰值增益 | 3.52(dBi) | ||
| 测试条件 | passive test | ||
| 无源效率 | ≥50% | ||
| 天线类型 | FPC+Cable | ||
| 连接器类型 | N/A | ||
| 射频线型号 | OD1.13 Black | ||
| 尺寸 | 48*15mm | ||
| 盐雾测试 | 48 H | ||
| 工作温度 | -40℃～+70℃ | ||
| 存储温度 | -40℃～+70℃ | ||
