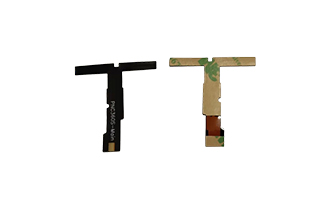

81800U967
LTE,FPC,High Performance
| 频段范围 | 700-960/1700-2700 (MHz) | ||
| 阻抗 | 50 (Ω) | ||
| 驻波比 | ≤4.2/≤1.7 | ||
| 辐射方向 | Omni directional | ||
| 极化形式 | Vertical | ||
| 峰值增益 | 0.96(dBi)/2.76 (dBi) | ||
| 测试条件 | passive test | ||
| 无源效率 | ＞25%/＞50% | ||
| 天线类型 | FPC | ||
| 连接器类型 | N/A | ||
| 射频线型号 | N/A | ||
| 尺寸 | 40.36*38.56mm | ||
| 盐雾测试 | 48 (H) | ||
| 工作温度 | -40℃～+80℃ | ||
| 存储温度 | -40℃～+80℃ | ||
