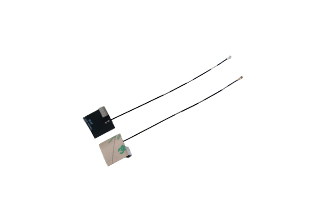

81800V100
WIFI,FPC,High Performance
| 频段范围 | 2400-2500MHz/5150-5850MHz | ||
| 阻抗 | 50 (Ω) | ||
| 驻波比 | ≤3/≤4 | ||
| 辐射方向 | Omni directional | ||
| 极化形式 | Vertical | ||
| 峰值增益 | 2.49dBi /8.63dBi | ||
| 测试条件 | passive test | ||
| 无源效率 | ＞30%/＞20% | ||
| 天线类型 | FPC+Cable | ||
| 连接器类型 | USS RF 1 | ||
| 射频线型号 | OD1.13 | ||
| 尺寸 | 25.6*25.4mm | ||
| 盐雾测试 | 48 (H) | ||
| 工作温度 | -40℃～+80℃ | ||
| 存储温度 | -40℃～+80℃ | ||
